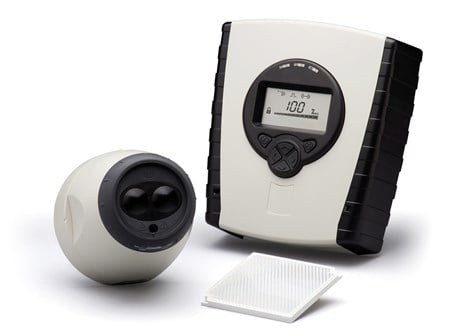

SA7100-100APO: Intelligent Reflective Beam Detector – Auto-Aligning

The Intelligent Auto-Aligning Beam Detectors use the light obscuration principle and sees light produced by the transmitter. Beam detectors are ideal to monitor large open areas and buildings with high ceilings.

EN 54-12 & EN 54-18 Certified
Allows use of 2 detector heads per low level controller
Each detector head configurable from 8m to 100m
Building Movement and Contamination Compensation
Selectable ‘Alarm’ and ‘Pre-Alarm’ thresholds
XP95, Discovery and CoreProtocol compatible

Số lượng:

Cho vào giỏ hàng

Thông tin sản phẩm

General	pplications: Churches, Warehouses

Performance	Operating distance (max): 100m Operating distance (min): 8m Operating distance: 8 to 100m Optical wave length: 850nm

Performance

Operating distance (max): 100m

Operating distance (min): 8m

Operating distance: 8 to 100m

Optical wave length: 850nm

Mechan ical	Colour: Grey Materials housing: Polycarbonate Controller with base – height: 230mm Controller with base – weight: 1000g Controller with base – width: 202mm Detector with base – height: 131mm Detector with base – weight: 537g Detector with base – width: 134mm Universal bracket – width: 202mm Universal bracket – height: 230mm Reflector – height: 100mm Reflector – width: 100mm Reflector – weight: 100g

Mechan ical

Colour: Grey

Materials housing: Polycarbonate

Controller with base – height: 230mm

Controller with base – weight: 1000g

Controller with base – width: 202mm

Detector with base – height: 131mm

Detector with base – weight: 537g

Detector with base – width: 134mm

Universal bracket – width: 202mm

Universal bracket – height: 230mm

Reflector – height: 100mm

Reflector – width: 100mm

Reflector – weight: 100g

Conformance	Standards: EN 54-12, EN 54-17 Approvals: CPR, VdS

Conformance

Standards: EN 54-12, EN 54-17

Approvals: CPR, VdS

Electricalvvv	Supply voltage (max): 35V dc Supply voltage (min): 17V dc Supply voltage (Vmin-Vmax): 17 to 35V dc

Electricalvvv

Supply voltage (max): 35V dc

Supply voltage (min): 17V dc

Supply voltage (Vmin-Vmax): 17 to 35V dc

Environmental	Humidity (max): 93%, RH Humidity (min): 0%, RH Humidity Note: no condensation or icing Humidity: 0% to 93% (no condensation or icing) Operating temperature: -10 to 55°C Operating temperature (max): 55°C Operating temperature (min): -10°C IP rating: Designed to IP rating Value: IP54 Storage temperature (max): 85°C Storage temperature (min): -40°C Storage temperature: -40 to 85°C Operating temperature: 14 to 131°F Operating temperature (max): 131°F Operating temperature (min): 14°F

Environmental
