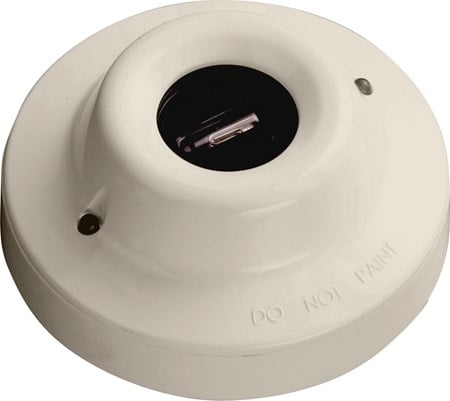

55000-025APO: Series 65 Flame Detector (UV) – Base Mounted

The Series 65 Flame Detector (UV) is designed to protect enclosed indoor areas where open flaming fires may be expected. The detector has a fast-acting response to flames up to 25m away and is equipped with a single UV sensor with a narrow spectral response in order to discriminate between flames and most spurious sources of radiation.

Responds to stationary flames with no flicker
Sensitive to UV radiation emitted by flames during combustion
Compact flame detector which fits into Series 65 bases
Zone-powered
To be used with either Series 65 or Orbis Systems

Số lượng:

Cho vào giỏ hàng

Thông tin sản phẩm

General	pplications: Restaurants, Retail, Small to medium buildings

Mechanical	Colour: White

Conformance	Standards: EN 54-10 Approvals: CPR, LPCB

Conformance

Standards: EN 54-10

Approvals: CPR, LPCB

Electrical	Quiescent current: 550μA

Environmental	Humidity (max): 95%, RH Humidity (min): 0%, RH Humidity Note: no condensation or icing Humidity: 0% to 95% (no condensation or icing) Operating temperature: -40 to 70°C Operating temperature (max): 70°C Operating temperature (min): -40°C Storage temperature (max): -40°C Storage temperature (min): 95°C Storage temperature: 95 to -40°C Operating temperature: -40 to 158°F Operating temperature (max): 158°F Operating temperature (min): -40°F
