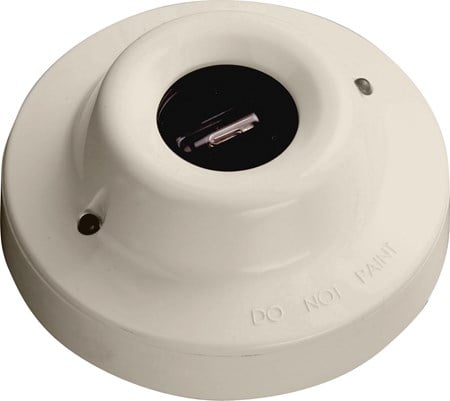

55000-028MAR: XP95 Marine Flame Detector (UV/IR2) – Base Mounted

The XP95 Marine Flame Detector (UV/IR2) is designed to protect open indoor areas where open flaming fires may be expected. The detector has a UV and dual IR sensors responding to different wavelengths in order to discriminate between flames and spurious sources of radiation.

Responds to stationary flames with no flicker
Sensitive to low-frequency flickering IR radiation emitted by flames during combustion
Compact flame detector which fits into Discovery Marine bases
Loop-powered
False alarms due to factors such as flickering sunlight are avoided by a combination of filters and signal processing techniques

Số lượng:

Cho vào giỏ hàng

Thông tin sản phẩm

Mechanical	Colour: White Weight: 150g Materials housing: Polycarbonate Materials terminals: Nickel plated stainless steel Product diameter: 100mm Product depth: 40mm Sensing window material: Quartz Sensing window thickness: 2mm Product depth: 1.57in Product diameter: 3.94in

Mechanical

Colour: White

Weight: 150g

Materials housing: Polycarbonate

Materials terminals: Nickel plated stainless steel

Product diameter: 100mm

Product depth: 40mm

Sensing window material: Quartz

Sensing window thickness: 2mm

Product depth: 1.57in

Product diameter: 3.94in

Conformance	Standards: EN 54-10 Approvals: LR

Conformance

Standards: EN 54-10

Approvals: LR

Performance	Range of view (at 25m): 0.1m² n-heptane Field of view: 90° Spectral response – IR: 0.75 to 2.7μm Spectral response (max) – IR: 2.7μm Spectral response (min) – IR: 0.75μm Sensitivity: High-Class 1, Low-Class 3 Chamber type: Chevron

Performance

Range of view (at 25m): 0.1m² n-heptane

Field of view: 90°

Spectral response – IR: 0.75 to 2.7μm

Spectral response (max) – IR: 2.7μm

Spectral response (min) – IR: 0.75μm

Sensitivity: High-Class 1, Low-Class 3

Chamber type: Chevron

Electrical	Protocol voltage: 5 to 9V peak to peak Protocol voltage (max): 9V Protocol voltage (min): 5V Power-up surge current: 9mA Maximum power-up time: 4 seconds Quiescent current: 2500μA Supply voltage (max): 28V dc Supply voltage (min): 17V dc Supply voltage (Vmin-Vmax): 17 to 28V dc

Electrical

Protocol voltage: 5 to 9V peak to peak

Protocol voltage (max): 9V

Protocol voltage (min): 5V

Power-up surge current: 9mA

Maximum power-up time: 4 seconds

Quiescent current: 2500μA

Supply voltage (max): 28V dc

Supply voltage (min): 17V dc

Supply voltage (Vmin-Vmax): 17 to 28V dc

Environmental	Humidity (max): 95%, RH Humidity (min): 0%, RH Humidity Note: no condensation or icing Humidity: 0% to 95% (no condensation or icing) Operating temperature: -40 to 70°C Operating temperature (max): 70°C Operating temperature (min): -40°C IP rating Value: IP66 Storage temperature (max): 70°C Storage temperature (min): -40°C Storage temperature: -40 to 70°C Operating temperature: -40 to 158°F Operating temperature (max): 158°F Operating temperature (min): -40°F

Environmental
