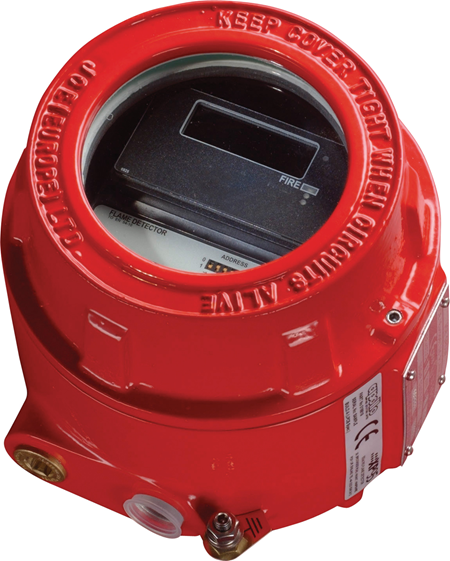

55000-021APO - XP95 Exd Flame Detector (IR3) – Flameproof

The XP95 Exd Flame Detector (IR3) is designed to protect areas where open flaming fires may be expected. It is sensitive to low frequency, flickering infra-red radiation emitted by flames during combustion.

Loop-powered
Sensitive to flickering IR radiation
Detects through films of oil, dust, water and ice
Responds to flickering flames, including those invisible to the naked eye
False alarms due to lighting or flickering sunlight are minimised
Compatible with Discovery and XP95 protocols

Số lượng:

Cho vào giỏ hàng

Thông tin sản phẩm

Conformance	Approvals: BASEEFA, CPR, LPCB, IECEx

Mechanical	Colour: Red Weight: 2500g Materials housing: Copper, Free, Aluminium Product width: 146mm Product depth: 137mm Product width 5.75in Product depth 5.39in

Mechanical

Colour: Red

Weight: 2500g

Materials housing: Copper, Free, Aluminium

Product width: 146mm

Product depth: 137mm

Product width 5.75in

Product depth 5.39in

Environmental	Humidity (max) 95%, RH Humidity (min) 0%, RH Humidity Note no condensation or icing Humidity 0% to 95% (no condensation or icing) Operating temperature: -10 to 55°C Operating temperature (max): 55°C Operating temperature (min): -10°C Storage temperature (max): 65°C Storage temperature (min): -20°C Storage temperature: -20 to 65°C Operating temperature: 14 to 131°F Operating temperature (max): 131°F Operating temperature (min): 14°F

Environmental
