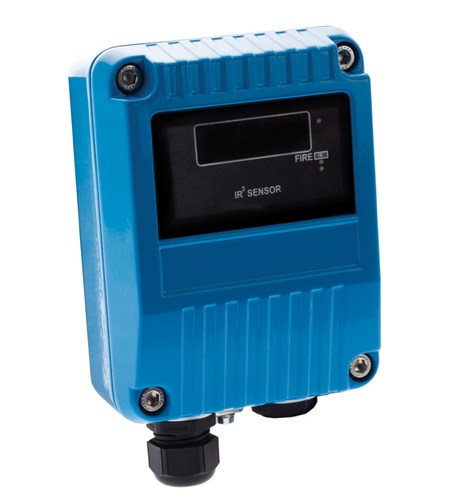

55000-063APO: Conventional I.S. Flame Detector (IR3)

The Conventional I.S. Flame Detector (IR3) is designed for harsh environments in either indoor or outdoor applications. It is sensitive to low frequnency flickering IR radiation emitted from flames during combustion. The sensor operates even through a layer of oil, dust, water vapour or ice.

ATEX & IECEx certified: II 1 G
CENELEC/IEC Certified: Ga Ex ia IIC T4
Class 1 sensitivity to EN 54-10 detects 0.1m2 fire at 25m
High optical interference immunity
Selectable response speed
Optical self test
Low power consumption

Số lượng:

Cho vào giỏ hàng

Thông tin sản phẩm

General	Applications: Industrial premises, Warehouses

Mechanical	Colour: Blue Weight: 2000g Materials housing: Die-cast zinc alloy Product length: 142mm Product width: 108mm Product depth: 82mm Product length: 5.59in Product width: 4.25in Product depth: 3.23in

Mechanical

Colour: Blue

Weight: 2000g

Materials housing: Die-cast zinc alloy

Product length: 142mm

Product width: 108mm

Product depth: 82mm

Product length: 5.59in

Product width: 4.25in

Product depth: 3.23in

Conformance	Standards: EN 54-10 Approvals: BASEEFA, CPR, LPCB

Conformance

Standards: EN 54-10

Approvals: BASEEFA, CPR, LPCB

Performance	Range of view (at 25m): 0.1m² n-heptane Range of view (at 35m): 0.2m² n-heptane Range of view (at 45m): 0.4m² n-heptane

Performance

Range of view (at 25m): 0.1m² n-heptane

Range of view (at 35m): 0.2m² n-heptane

Range of view (at 45m): 0.4m² n-heptane

Electrical	Supply voltage (max): 30V dc Supply voltage (min): 14V dc Supply voltage (Vmin-Vmax): 14 to 30V dc

Electrical

Supply voltage (max): 30V dc

Supply voltage (min): 14V dc

Supply voltage (Vmin-Vmax): 14 to 30V dc

Environmental	Humidity (max): 95%, RH Humidity (min): 0%, RH Humidity Note: no condensation or icing Humidity: 0% to 95% (no condensation or icing) Operating temperature: -10 to 40°C Operating temperature (max): 40°C Operating temperature (min): -10°C Storage temperature (max): 65°C Storage temperature (min): -20°C Storage temperature: -20 to 65°C Operating temperature: 14 to 104°F Operating temperature (max): 104°F Operating temperature (min): 14°F

Environmental
