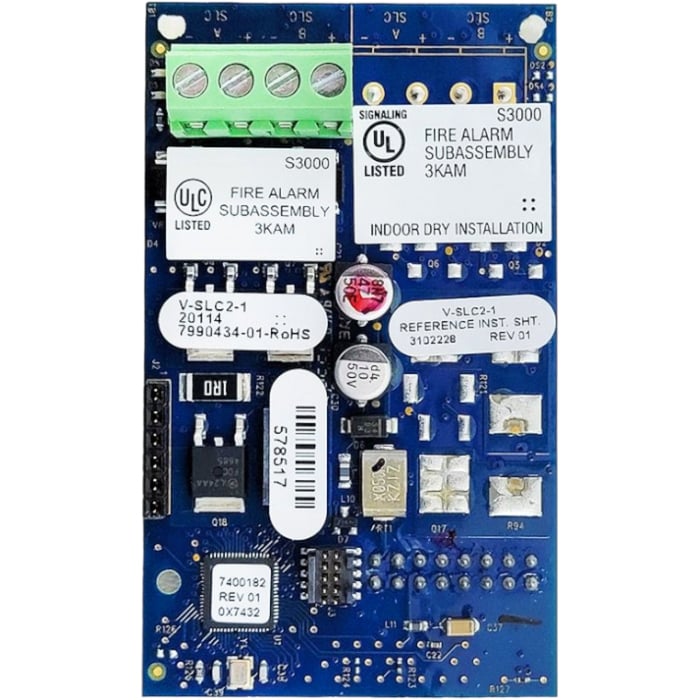

V-SLC2-1. Expansion module, one 250-device loop

Kidde VS Series panels are supported by a complete line of modules and related equipment that enhance performance and extend system capabilities. Option cards plug directly into the control panel main circuit board or are connected to it with a ribbon cable. After installation, terminals remain accessible. The cabinet provides ample room for wire routing, keeping wiring neat at all times. The V-SLC2-1 is a single loop controller card that can be used with the VS1 as a replacement for the standard 64-point loop, or with the VS4 as a 250-point expansion module.



Số lượng:
  Cho vào giỏ hàng

  • Thông tin sản phẩm

Device Addresses: VS4: one loop, 250 device addresses VS1: 64 addresses

Wiring: Class B or Class A

Operating Voltage: 24 VDC

Operating Current (fully loaded loop): Standby: 55 mA; Alarm: 80 mA

Communication Line Voltage: Max. 20.6 V peak-to-peak

Terminal Rating: 12 to 18 AWG (0.75 to 2.5 mm2)

Circuit Current: 0.5 A max.

Max total loop resistance: 66 Ω

Max total loop capacitance: 0.5 μF

Isolators: 64 isolators maximum per loop (total both isolator bases and modules)

Ground Fault Impedance: 0 to 5 kΩ

Operating Environment: 32 to 120°F (0 to 49°C) 0 to 93% noncondensing at 90°F (32°C)
