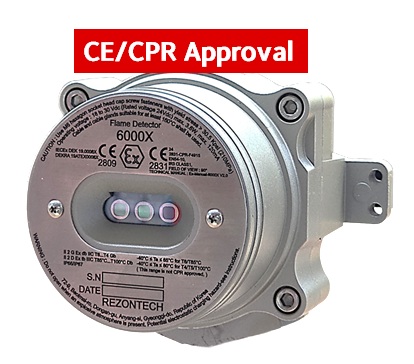

• Multispectrum IR sensors
• Enhanced False Alarm Immunity against sunlight and artificial false alarm sources
• Approval for Explosion-Proof and Dust Ignition proof
• Suitable for hazardous areas such as Oil, Gas stations and Petrochemical plants
• Excellent resistance to corrosion
• Field selectable sensitivity and delay time
|
[ Specification ]
• Type : Triple Infrared
• Detection Range : 200ft(60m) for n-Heptane fire
• Field of View : Horizontal 90°, Vertical 90°
• Temperature Range Operating : -40℃ to +80℃
• Humidity Range : 0 to 95% relative humidity
• performance :
- FM3260 (pending)
• Explosion proof :
- Ex db IIC T6...T4 Gb
- Ex tb IIIC T85°C...T100°C Db
• Output
- Relay
· Fire Alarm, Fault Alarm, Warning Alarm
· From A or B Selectable, 30VDC, 3A
- 4-20mA
- RS-485
|
[ Structure ]
• Dimensions : W146 x H118 x D108 mm
W5.7 x H4.6 x D4.3 Inch
• Enclosure Material : Aluminum
• Shipping Weight : 2.4 kg
• Color : Bronze Gold
• Conduit Entry Size : 2 x 3/4 inch NPT
[ Electrical ]
• Operating Voltage : Typical DC24V (18 to 30)
• Power Consumption : 3.6W maximum at 30 VDC
• Wiring : 12AWG(3.31mm2) to 24AWG(0.205mm2) shielded cable recommended.
• Electromagnetic Compatibility : EMC Protected
|
